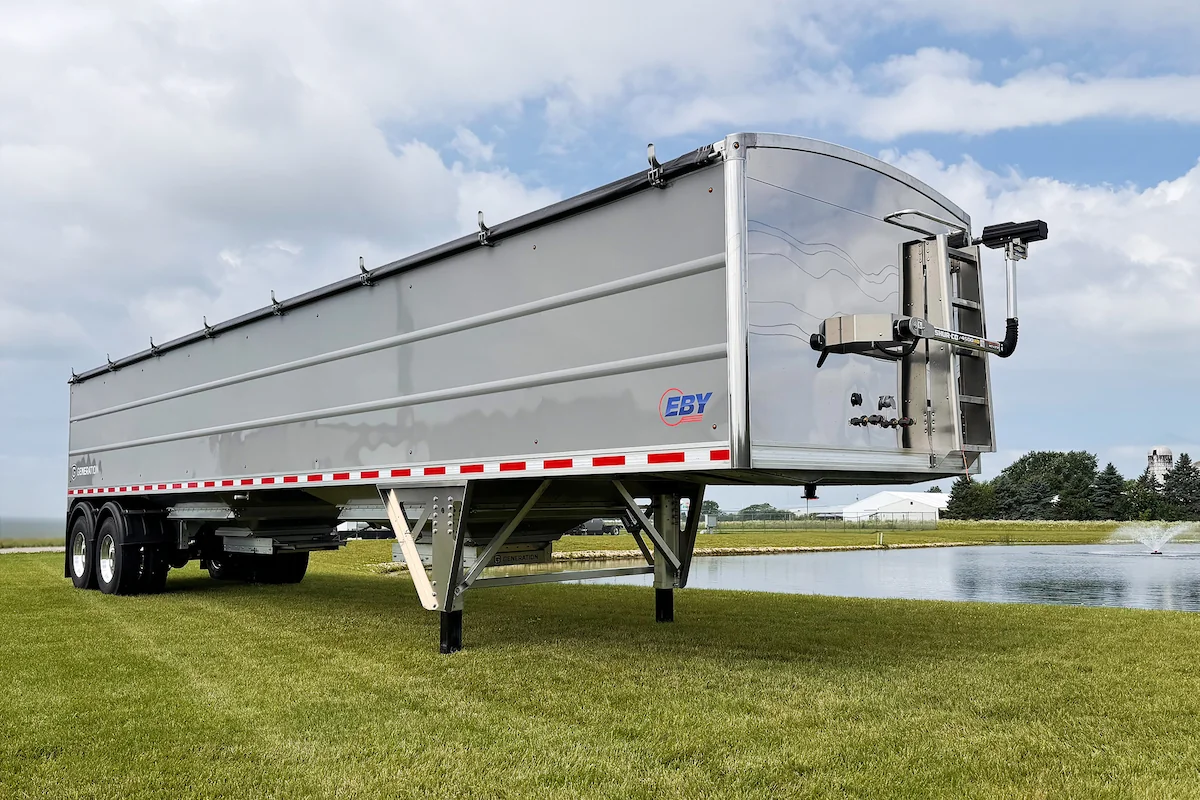

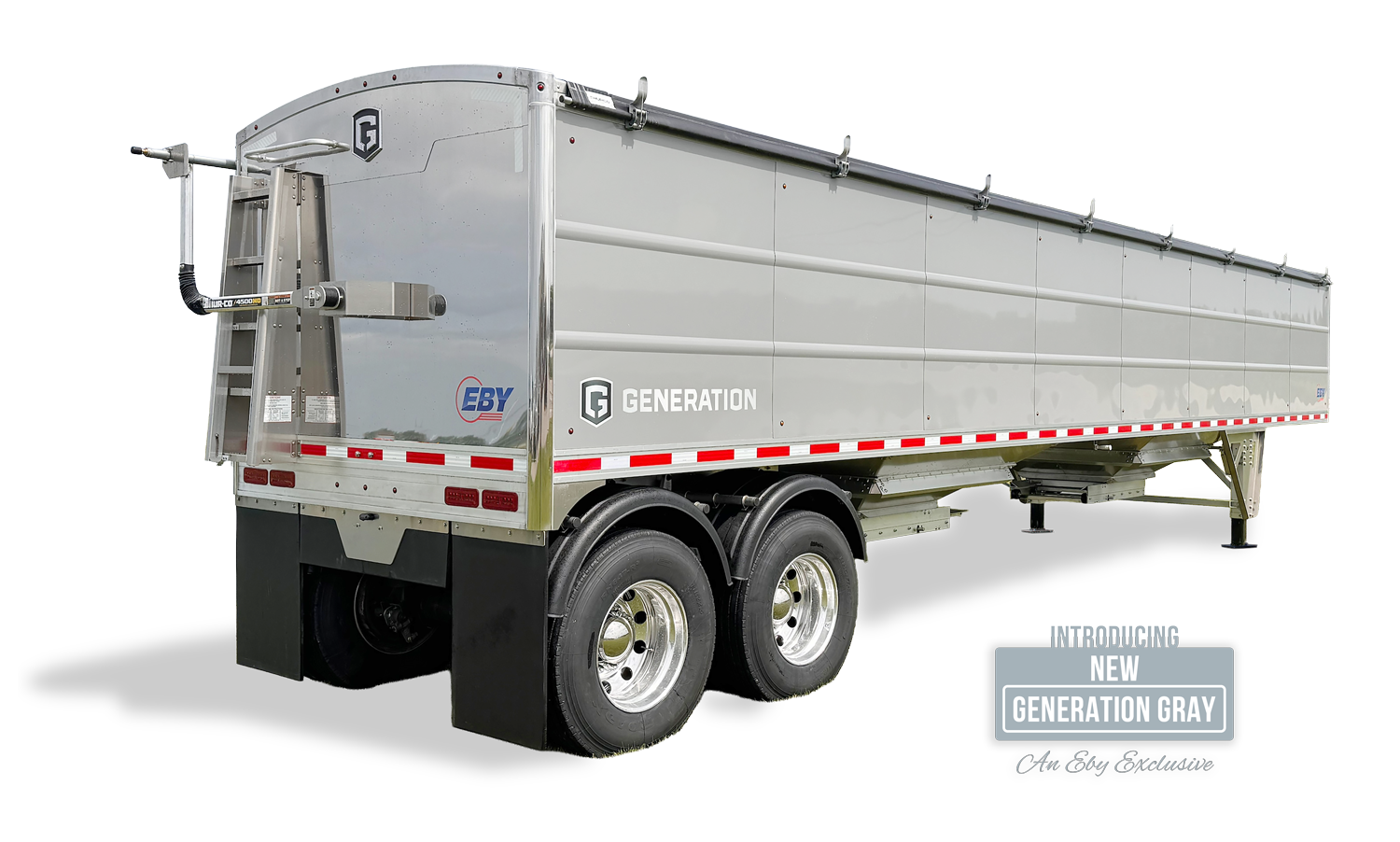

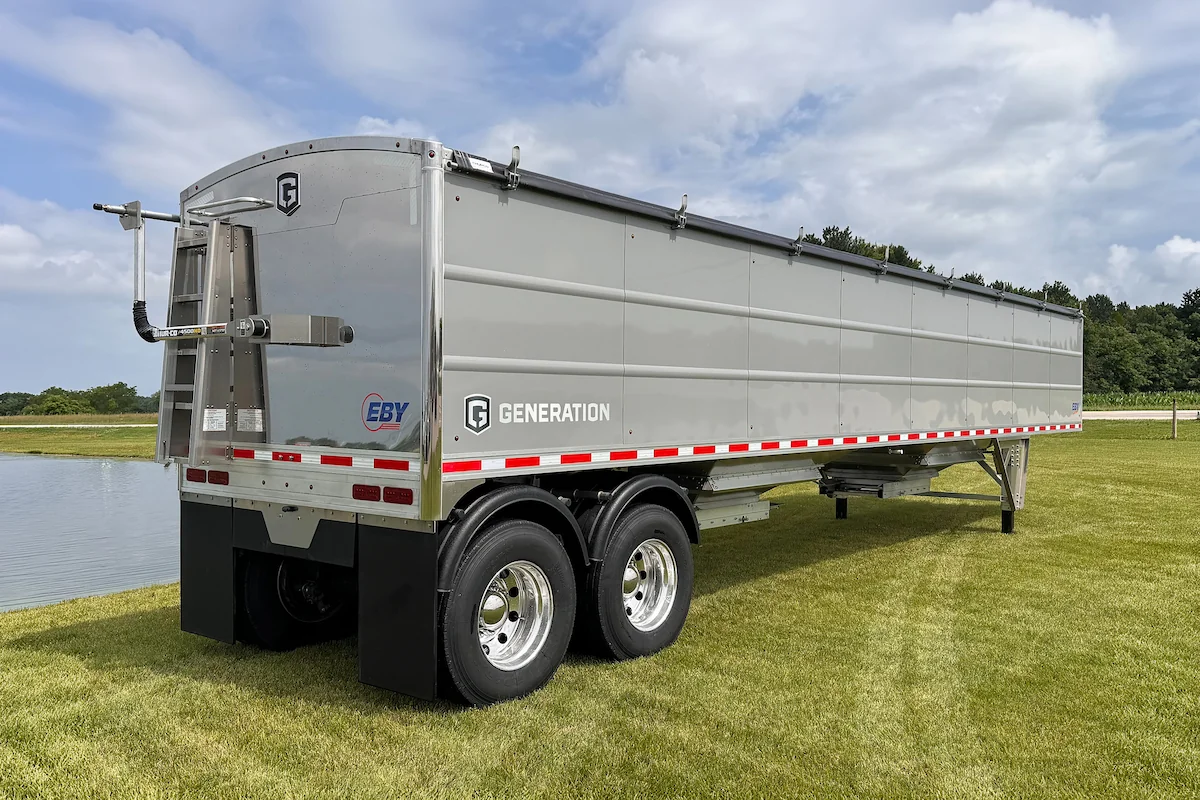

Generation Grain Trailer

Superior Grain Trailers. Built specifically with you in mind.

Available Sizes

Generation Grain Trailer Dimensions

* Shown as heaped capacity.

MODEL

(A) x (B)

CAPACITY*

(C) 66" Wall
(D) 10'5"
Overall Height

CAPACITY*

(C) 72" Wall
(D) 10'11"
Overall Height

CAPACITY*

(C) 78" Wall
(D) 11'5"
Overall Height

CAPACITY*

(C) 84" Wall
(D) 11'11"
Overall Height

CAPACITY*

(C) 96" Wall
(D) 12'11"
Overall Height

(E)
Ground
Clearance

Trap Door Openings

34'6" x 96" Field

N/A

1392 cu ft

N/A

N/A

N/A

24"

24"W x 27"L

40' x 96" Field

1436 cu ft

1579 cu ft

1722 cu ft

N/A

N/A

24"

24"W x 27"L

40' x 96" Mid Clearance

1533 cu ft

1676 cu ft

1818 cu ft

1961 cu ft

2246 cu ft

20.75"

32.25"W x 43.5"L

40' x 96" Commercial

1536 cu ft

1679 cu ft

1821 cu ft

1964 cu ft

2249 cu ft

18"

26.25"W x 35.5"L

40' x 102" Field

1534 cu ft

1686 cu ft

1838 cu ft

N/A

N/A

24"

30"W x 27"L

40' x 102" Commercial

1642 cu ft

1794 cu ft

1946 cu ft

2098 cu ft

2402 cu ft

18"

32.25"W x 35.5"L

42'3" x 96" Field

1498 cu ft

1650 cu ft

1801 cu ft

N/A

N/A

24"

24"W x 27"L

42'3" x 96" Mid Clearance

1621 cu ft

1772 cu ft

1923 cu ft

2074 cu ft

2376 cu ft

20.75"

32.25"W x 43.5"L

42'3" x 96" Commercial

1624 cu ft

1775 cu ft

1926 cu ft

2077 cu ft

2379 cu ft

18"

26.25"W x 35.5"L

42'3" x 96" Commercial, XL

N/A

1861 cu ft

2012 cu ft

2163 cu ft

2465 cu ft

18"

26.25"W x 53.25"L

42'3" x 102" Field

1600 cu ft

1761 cu ft

1923 cu ft

N/A

N/A

24"

30"W x 27"L

42'3" x 102" Commercial

1735 cu ft

1896 cu ft

2057 cu ft

2219 cu ft

2541 cu ft

18"

32.25"W x 35.5"L

42'3" x 102" Commercial, XL

N/A

1989 cu ft

2151 cu ft

2312 cu ft

2634 cu ft

18"

32.25"W x 53.25"L

49'11" x 96" Field

N/A

1766 cu ft

1932 cu ft

N/A

N/A

24"

24"W x 34"L

49'11" x 96" Mid Clearance

N/A

1865 cu ft

2028 cu ft

2195 cu ft

N/A

20.75"

32.25"W x 43.5"L

49'11" x 96" Commercial

N/A

1868 cu ft

2031 cu ft

2198 cu ft

N/A

18"

26.25"W x 35.5"L

49'11" x 96" Commercial, XL

N/A

N/A

2087 cu ft

2254 cu ft

N/A

18"

26.25"W x 53.25"L

49'11" x 102" Commercial

N/A

1995 cu ft

2170 cu ft

2348 cu ft

N/A

18"

32.25"W x 35.5"L

49'11" x 102" Commercial, XL

N/A

N/A

2220 cu ft

2404 cu ft

N/A

18"

32.25"W x 53.25"L

Clearances

Clearances Illustration for Commercial XL

Commercial XL

18'' Ground Clearance

Clearances illustration for Field

field

24'' Ground Clearance

Clearances illustration for MID

Mid

20.75'' Ground Clearance

Clearances illustration for Commercial

Commercial

18'' Ground Clearance

Specifications

Quality engineering, materials, and manufacturing is the Eby standard.

STANDARD SPECIFICATIONS

Lengths

34'6", 40', 42' and 50'

Widths

96" and 102"

Heights

66", 72", 78" and 84"

Coupler

Tapered Double Bolstered Galvanized

Landing Gear

Jost Aluminum Dolly Legs

Suspension Frame

Duraframe - 13" Aluminum Beams

Suspension

Hendrickson INTRAAX Air Ride System

Brakes

Drum

Wheel Size

22.5

Tarp System

Shur-Co 4500 HD, Diamondcore tarp

End Caps

Integrated & enclosed with cast aluminum corner caps

Power Accessories

Pre-wired for Shur-Co power tarp and doors

Hoppers

Formed hopper design

Knock Rails

All sides

Doors

Stainless steel door assembly

Operator

Manual, gear drive

Rollers

4" Rollers - easily greased from exterior

Side Lights

(2) Rows of (5) LED

Ladders

Front and rear w/ folding extension

Warranty

3-Year structural warranty

Standard Features

Self-Cleaning Sloped Top Rails
Self-cleaning sloped top rails
Shur-Co 4500HD Tarp System
Shur-Co 4500HD Tarp System
Integrated Arched Headers
Integrated arched headers
Cast Aluminum Tarp Bow Sleeves
Cast aluminum tarp bow sleeves
Reverse Opening Traps
Reverse opening grain traps
Jost Aluminum Dolly Legs
JOST aluminum dolly legs
Updated Horizontal Glad Hands
Horizontal Glad hands
Modular Lighting Harness System
Modular lighting harness system
Mechanically Fastened Trap Frames
Mechanically fastened grain trap frames
Stainless Steel Trap Doors
Stainless steel grain trap doors
Greaseable 4” Trap Roller Wheels
Greaseable 4" trap roller wheels
Removable Tarp Crank Retainer Bar
Removeable tarp crank retainer bar

Popular Options

Build the grain trailer you've always dreamed of with a wide selection of premium options and upgrades.

Minimizer Fenders
Fenders
Shur-Co Power Trap Opener
Auto trap opener
Painted Bottom Rail Overlay
pain match overlay

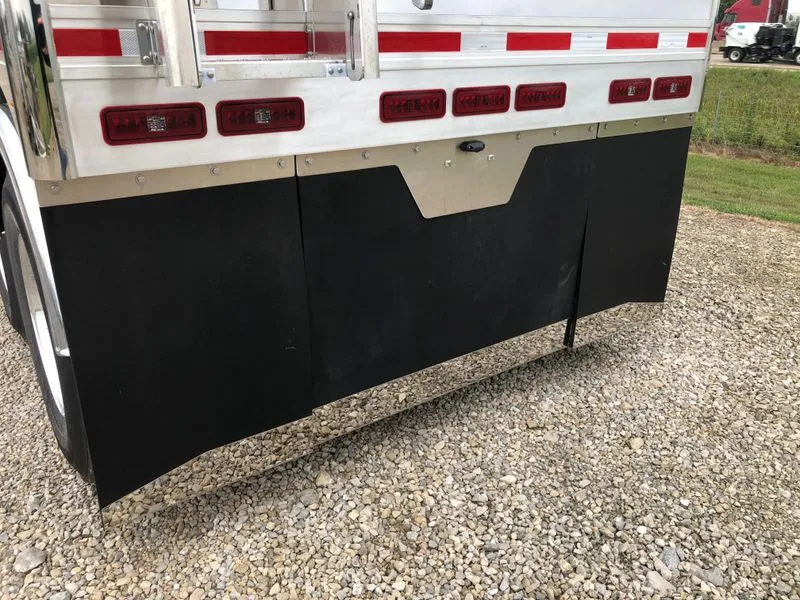

Weighted Mudflaps
Mud flaps
Port View Window
Window Port
Hopper Vibrators
Hopper vibrator
Lift-Axle Kit
Lift Axle
Hendrickson Disc Brakes
Disc Brakes
Trap Lights Between Tubs
Trap Lights
Bogie Lights
Bogie Lights

Back-End Finishes

Stainless and color-matching panel combinations for the back-end available.

More popular Options

Accessory Packages

Charter, Founder, Signature

Power Tarp

Shur-Co 4500 Tarp System

Power Doors

Shur-Co Power Door Openers

Fenders

Minimizer Fenders

Side Panel Color

White, Black, Gun Metal Gray

Side Lights

(2) rows of (9), (2) rows of (17)

Rear Lights

Automatic back-up lights

Stainless

Front Panel, Rear Panel, Corners

Vibrators

Permanent and removable

Mudflaps

3/4" Flaps with stainless weights

Lift Axle

Auto deploy front or rear lift

Tires

General / Continental

Packages

DESCRIPTION

CHARTER

CHARTER PLUS

FOUNDER

SIGNATURE

Stainless steel front panel

Stainless steel rear header w/ painted rear panel

Stainless steel rear panel

Stainless steel corners

Polished corner caps

Side marker lights

2 rows of 5

2 rows of 5

2 rows of 9

2 rows of 17

(4) Additional rear side marker lights

(7) Dual-function rear header lights

(3) Additional 1" buckplate lights

(3) Additional taillights on buckplate

Automatic backup lights

Trap lights between the tubs

Duraframe aluminum suspension frame

Galvanized upper coupler

Galvanized suspension brackets

Shur-Co power tarp system

Smart 3

Smart 3

Smart 3

Smart 2

Alcoa LVL inner wheels

Alcoa LVL outer wheels

Durabrite outer wheels

Tires

General

General

General

Continental

Black poly fenders

Poly chrome fenders

Stainless steel hubcaps and lug nut covers

Engineered for performance, packaged to impress, built specifically with you in mind. Contact us today and let’s start building the vision of your next Generation.
